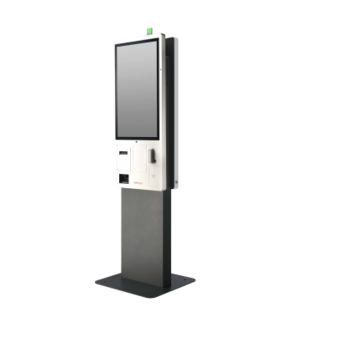

Kiosk Cachet JK-3200 Series

POSIFLEX PRODUCTS

Designed with slimness and flexibility in mind, the Cachet JK-3200 Series* is a 32” kiosk that offers endless different ways to blend into any retail environment. With a true-flat enclosure, along with a wide range of peripheral options, the Cachet JK-3200 Series is capable of processing all the self-service applications while helping retailers to build intimate relationship with customers.

Designed with slimness and flexibility in mind, the Cachet JK-3200 Series* is a 32” kiosk that offers endless different ways to blend into any retail environment. With a true-flat enclosure, along with a wide range of peripheral options, the Cachet JK-3200 Series is capable of processing all the self-service applications while helping retailers to build intimate relationship with customers.



• • SPECIFICATION

• • • • • • • • • •

Processor

JK-3210: Dual Cortex-A72 + Quad Cortex-A53, JK-3230: Intel Bay Trail J1900, Quad Core, up to 2.42 GHz, 2M Cache, JK-3250: Intel 7th Generation Kaby Lake U Core i3/i5

System Memory

JK-3210: DDR4, 2GB, JK-3230: DDR3L SO-DIMM slot x 1, max. 8 GB, JK-3250: DDR4 SO-DIMM slot x 1, max. 16 GB

Storage Device

JK-3210: 16 GB eMMC, JK-3230: SATA SSD x 1, JK-3250: SATA SSD x 1

Intel VPro Support

JK-3250: Core i5: Yes (for option)

TPM

JK-3230 & JK-3250: Yes (for option)

Power Supply

12V/60W x 1 + 24V/60W x 1

OS Support

JK-3210: Android 9.0, JK-3230: Win 7/POSReady 7/WE 8.1 Industry/Win 10 IoT, JK-3250: Windows 10 IoT 64 bit

SERIAL PORT

JK-3210: RJ50 x 2, JK-3230 & JK-3250: RJ50 x 2 + DB9 x 1

STANDARD USB PORT

JK-3210: USB 3.0 x 1+USB 2.0 x 5, JK-3230: USB 3.0 x 1+ USB 2.0 x 7, JK-3250: USB 3.0 x 2 + USB 2.0 x 6

OTG USB

JK-3210: micro-USB x 1

DISPLAY PORT

1 x HDMI

LAN PORT

10/100/1000 Mb x 2

Audio

Internal 3W speaker x 2

EXPANSION SLOT

JK-3230 & JK-3250: M.2 x 1

LCD

32"

RESOLUTION

1920 x 1080

TOUCH

True-flat PCAP touch with multi-touch support

• • PHYSICAL DIMENSION

• • • • • • • • • •

DIMENSION (W X D X H IN MM)

JK-3210: 602 x 602 x 1902 (Floor-standing), 495 x 152 x 1152 (Wall-mounted), JK-3230: 602 x 602 x 1902 (Single or dual sided), 495 x 152 x 1152 (Wall-mounted), JK-3250: 602 x 602 x 1902 (Single or dual sided), 495 x 152 x 1152 (Wall-mounted)

Weight

JK-3210: 65 (with pole), 35 (with wall mount bracket), JK-3230 & JK 3250: 65 (Single sided), 81.5 (Dual sided), 5 (Wall-mounted)

• • ENVIRONMENTAL

• • • • • • • • • •

OPERATING CONDITION

JK-3210: 0°C – 50°C, 20%RH – 90%RH, JK-3230 & JK-3250: 0°C – 50°C, 20%RH – 90%RH (Equipped with SSD)

STORAGE CONDITION

-20°C – 70°C, 10%RH – 90%RH

Status Indicator

RGB Color LED Indicator

Proximity Sensor

Range from 60 cm to 100 cm

CAMERA

1MP wide angle camera

Printer

3" thermal printer w/auto cutter, 200 mm/sec (max.)

WIFI

JK-3210: USB Dongle, JK-3230 & JK3250: M.2 WiFi/BT module

Scanner

2D barcode scanner

EMV Payment Device Bracket

Custom bracket support for various EMV payment devices

MSR

3 tracks ISO or JISII (HID/VCOM selection)

Finger Print Sensor

Optical type

NFC

JK-3230 & JK-3250: Support ISO/IEC 14443-A&B (MIFARE), JIS x 6319-4 (Felica), ISO/IEC 15693, NFC protocols – tag read/write (ISO/IEC-18092)

4G / LTE

Support selected bands & countries with full SIM slot (mini-PCIe module) by request
