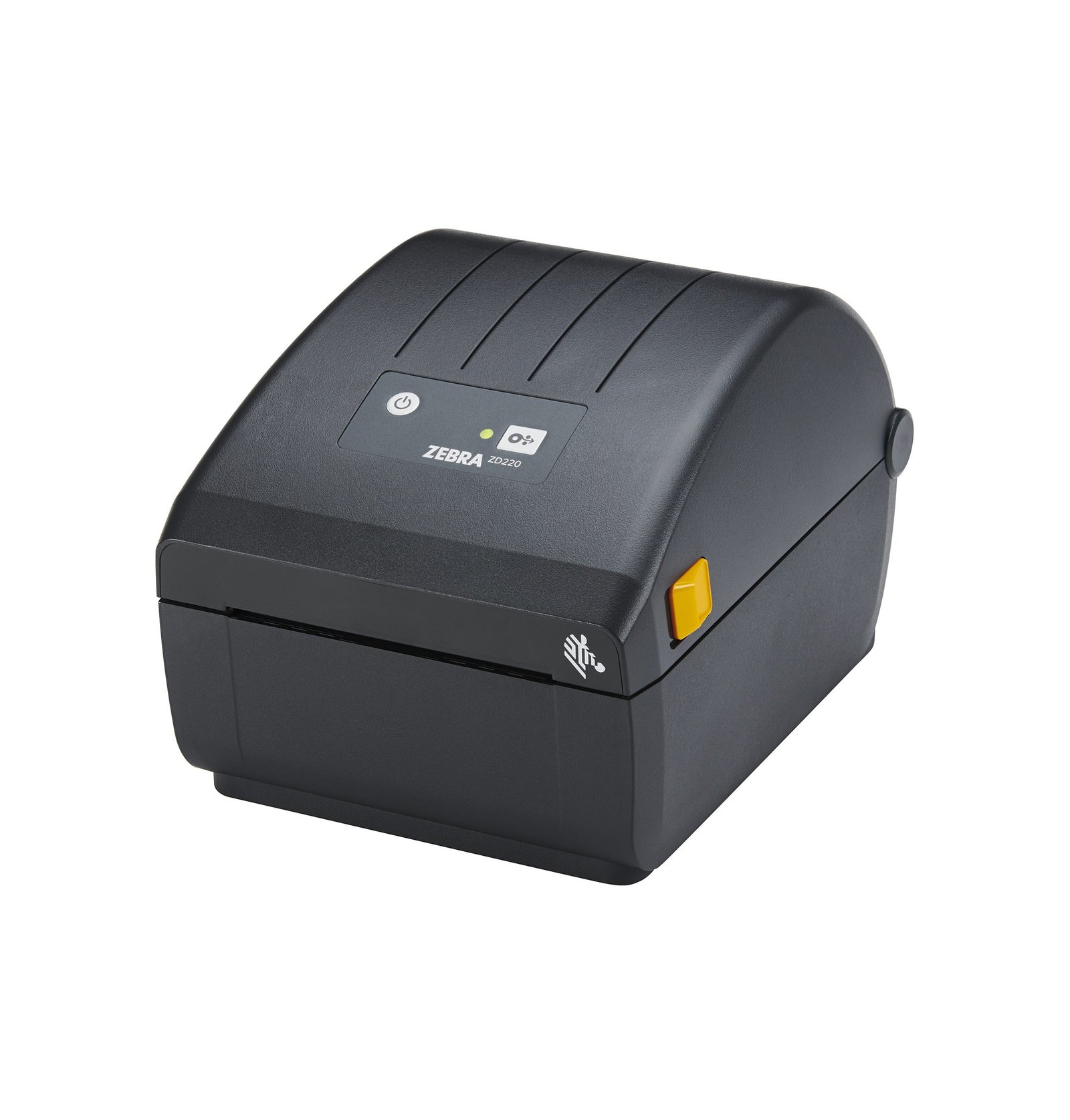

Desktop Printer ZD220
Not all printers are created equally, especially basic models. To reduce costs, value printers are often constructed using less expensive components. Many fail to perform under more demanding duty cycles, create delays and downtime for repairs, and require replacement after only a few years of use. Instead of conserving budget, customers are left with greater expense and hassle.
Zebra does it differently. The ZD220 desktop printer gives you reliable operation and basic features at an affordable price—both at the point of purchase and across the entire lifecycle. Engineered with Zebra quality, it boasts a dual-wall construction for added durability. And, it is ENERGY STAR® qualified to reduce your operational expenses. Built to last for years, the ZD220 provides an outstanding return on your investment.
Not all printers are created equally, especially basic models. To reduce costs, value printers are often constructed using less expensive components. Many fail to perform under more demanding duty cycles, create delays and downtime for repairs, and require replacement after only a few years of use. Instead of conserving budget, customers are left with greater expense and hassle.
Zebra does it differently. The ZD220 desktop printer gives you reliable operation and basic features at an affordable price—both at the point of purchase and across the entire lifecycle. Engineered with Zebra quality, it boasts a dual-wall construction for added durability. And, it is ENERGY STAR® qualified to reduce your operational expenses. Built to last for years, the ZD220 provides an outstanding return on your investment.
| STANDARD FEATURES | Dual-wall frame construction, ENERGY STAR qualified, OpenACCESS™ for easy media loading, Single button for feed/pause, Single LED status indicator, Thermal Transfer or Direct Thermal print method, USB connectivity, ZPL and EPL programming languages |
|---|---|
| Dimensions | Direct Thermal: 8.6 in. L x 6.9 in. W x 5.9 in. H, Thermal Transfer: 10.5 in. L x 7.75 in. W x 7.5 in. H |
| Weight | 2.5 lbs./1.1 kg |
| • • SPECIFICATION | • • • • • • • • • • |
| RESOLUTION | 203 dpi/8 dots per mm |
| Memory | 256 MB Flash; 128 MB SDRAM |
| Maximum Print Width | 4.09 in./104 mm |
| Maximum Print Speed | 4 in./102 mm per second |
| Media Sensors | Fixed off-center gap sensor, Movable black mark sensor, limited range from center to left side |
| FIRMWARE | EPL 2, XML, ZPL II |
| Maximum Label Length | 39.0 in./991 mm |
| Media Width | 1.00 in. / 25.4 mm to 4.4 in. / 112 mm |
| Media Roll Size | 0.5 in. (12.7 mm) and 1.0 in. (25.4 mm) standard, 1.5 in. (38.1), 2.0 in., (50.8 mm) and 3.0 in. (76.2 mm) using optional adapters, 5.00 in./127 mm outer diameter Core inner diameter |
| Media Thickness | 0.003 in. (0.08 mm) min, 0.0075 in. (.1905 mm) max. (tear-off mode only) |
| Media Type | , die-cut or ccontinuous direct thermal or thermal transfer labels with or without black line, continuous receipt paper, Roll-fed or fan-fed, tag stock, wristbands |
| Ribbon Outside Diameter | 1.34 in./ 34 mm (74 m) |
| Maximum Ribbon Length | 244 ft. (74 m) |
| Ribbon Ratio | 1:1 media to ribbon (74 m) |
| Ribbon Width | 1.33 in./ 33.8 mm ~ 4.3 in./ 109.2 mm |
| Core I.D. | 74 Meter ribbon 0.5 in./ 12.7 mm |
| • • OPERATING CHARACTERISTICS | • • • • • • • • • • |
| Operating Temperature | 40° to 105° F/4.4° to 41° C |
| Storage temperature | -40° to 140° F/-40° to 60° C |
| Operating Humidity | 10% to 90% non-condensing |
| Storage Humidity | 5% to 95% non-condensing |
| Electrical | 50/60Hz, Auto-detectable (PFC Compliant) 100-240VAC, ENERGY STAR qualified |
| Options and Accessories | • • • • • • • • • • |
| Media Handling | Factory installed peeler |
| Real Time Clock | None |
| • •Fonts/Graphics/Symbologies | • • • • • • • • • • |
| Barcode Ratios | 2:1 and 3:1 |
| 1D | Codabar, Code 11, Code 128, Code 39, Code 93, EAN-13, EAN-8, Industrial 2-of-5, Interleaved 2-of-5, ISBT-128, Logmars, MSI, Planet Code, Plessey, Postnet, Standard 2-of-5, UPC-A, UPC-A and UPC-E with EAN 2 or 5 digit extensions, UPC-E |
| 2D | Aztec, Codablock, Code 49, Data Matrix, MaxiCode, MicroPDF417, PDF417, QR code |
| FONTS AND GRAPHICS | 16 resident expandable ZPL II bitmap fonts, 50 MB user available non-volatile memory, 8 MB user available SDRAM, China units include SimSun simplified Chinese font, Five resident expandable EPL2 fonts, native open-type font support, two resident scalable ZPL fonts, Unicode™ compliant for multi-language, on-demand thermal printing |
| PRINTER SUPPLIES | Keep your Zebra printer up and running with genuine Zebra printer supplies, available directly from Zebra. |
| BRAND |
