Posiflex Products

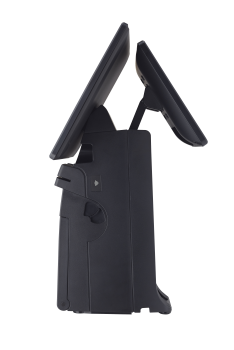

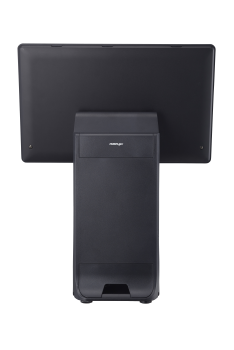

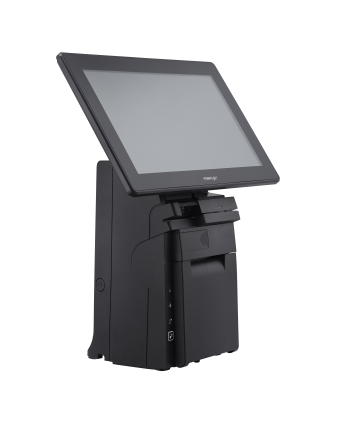

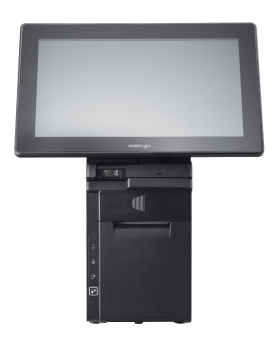

The HS-3514W-G2 is a whole new generation of high-end all-in-one POS terminal, packing innovativeness and functionalities in compact design with stylish look

Add to quote
ر.ق6.00 for 3 item(s)

Innovative All-in-one Solution

  • The HS-3514W-G2 integrates the most widely used peripherals options in daily POS operation including MSR, fingerprint sensor, RFID reader, barcode scanner and thermal printer.

Small Form Factor

  • Its compact footprint takes space saving to extremes and creates a clean, cable-free environment.

Modular Design

  • Detachable modularized printer design allows quick access to the components, enabling convenient, efficient serviceability.
SKU: HS-3514W-1 Categories: , , , Tags: , , , , , , , , , , , , Brand:
• • SPECIFICATION

• • • • • • • • • •
Processor

Intel Bay Trail J1900 Quad Core CPU, up to 2.42 GHz, 2M Cache
System Memory

DDR3L SO-DIMM x 1, max. 8GB
Storage Device

SATA storage x 2 (one for HDD/SSD; the other for 1” SSD only)
Power Supply

24V/60W
Built In Printer

3” detachable printer w/auto cutter, 250 mm/sec (max.)
OS Support

Linux per request, POSReady 7, WE 8.1 Industry, Win 10 IoT, Win 7
• • DISPLAY & TOUCH

• • • • • • • • • •
LCD

14" TFT LCD
RESOLUTION

1366 x 768
TOUCH

True-flat PCAP touch with multi-touch support (IP65 on front panel)
• • I/O & EXPANSION

• • • • • • • • • •
SERIAL PORT

3, DB9 x 2 + RJ50 x 1, 5V/12V support on all COM ports
STANDARD USB PORT

USB 2.0 x 4
PARALLEL PORT

Yes
LAN PORT

10/100/1000 Mb x 1
DISPLAY PORT

VGA x 1, 12V support for Posiflex monitors
CR PORT

1, control 2 CR via optional Y-cable (printer driven)
PS/2 PORT

Yes
Audio

Line-out x 1
EXPANSION SLOT

Mini-PCIe slot x 1
• • PHYSICAL DIMENSION

• • • • • • • • • •
DIMENSION (W X D X H IN MM)

371.5 x 198 x 473
Weight

5.8
• • ENVIRONMENTAL

• • • • • • • • • •
OPERATING CONDITION

0°C – 40 °C, 20%RH – 90%RH (Equipped with HDD), 0°C – 50°C, 20%RH – 90%RH (Equipped with SSD)
STORAGE CONDITION

-20°C – 70°C, 10%RH – 90%RH
• • BUILT-IN OPTIONS

• • • • • • • • • •
MSR

3 tracks ISO or JISII (HID/VCOM selection)
Finger Print Sensor

Optical type
WIFI

Mini-PCIe WiFi/BT module
RFID READER

Support MIFARE Ultralight and Classic 1K card (HID/VCOM Selectable)
Scanner

2D barcode scanner
iBUTTON

Yes (cannot coexist with FPU)
4G COMMUNICATION

Single SIM slot
BRAND

System Configuration
Processor Intel Elkhart Lake Celeron J6412, up to 2.60 GHz, 1.5M Cache
System Memory DDR4 SO-DIMM x 2, max. 32GB
Storage Device M.2 connector [supporting AHCI mode] x 2
TPM Yes, TPM 2.0
Power Supply 24V/100W
Built-in Printer 3” detachable printer w/auto cutter, 250 mm/sec (max.)
Built-in WiFi N/A
OS support Windows 10 IoT
Display & Touch
LCD 14″ TFT LCD
Resolution 1366 x 768
Touch True-flat PCAP touch with multi-touch support
I/O Expansion
Serial Port 3, DB9 x 2 + RJ50 x 1, 5V/12V support on all COM ports
Parallel Port Yes
Standard USB Port 4, USB 3.0 x 1+ USB 2.0 x 3
OTG USB N/A
LAN Port 10/100/1000 Mb x 1
Display Port VGA x 1, 12V support for Posiflex monitors
CR Port 1, controlling 2 CR (24V drive)
PS/2 Port Yes
Audio Line-out x 1
Expansion Slot M.2 slot x 1
Physical Dimension
Dimension (W x D x H in mm) 371.5 x 198 x 473
Weight (N. W. in kg) 6
Environmental
Operating Condition 0°C – 40°C, 20%RH – 90%RH
Storage Condition -20°C – 70°C, 10%RH – 90%RH
Built-in Options
WiFi M.2 WiFi/BT module
MSR 3 tracks ISO or JISII (HID/VCOM selection)
Fingerprint Sensor Optical type
RFID Reader Support MIFARE Ultralight and Classic 1K card (HID/VCOM Selectable)
Scanner 2D barcode scanner
iButton Yes (cannot coexist with Fingerprint Sensor)
4G / LTE Communication Single SIM slot, selected band support
Attachment Options
POS Monitor Non-touch TFT LCD: 7″/9.7″/12.1″;
PCAP touch TFT LCD: 9.7″
Line Display 2 x 20 rear-mount VFD customer line display;
2 x 20 rear-mount LCD customer line display;
