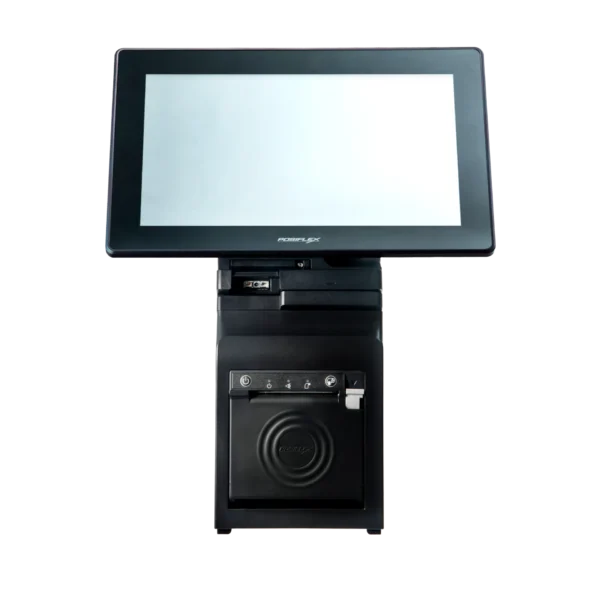

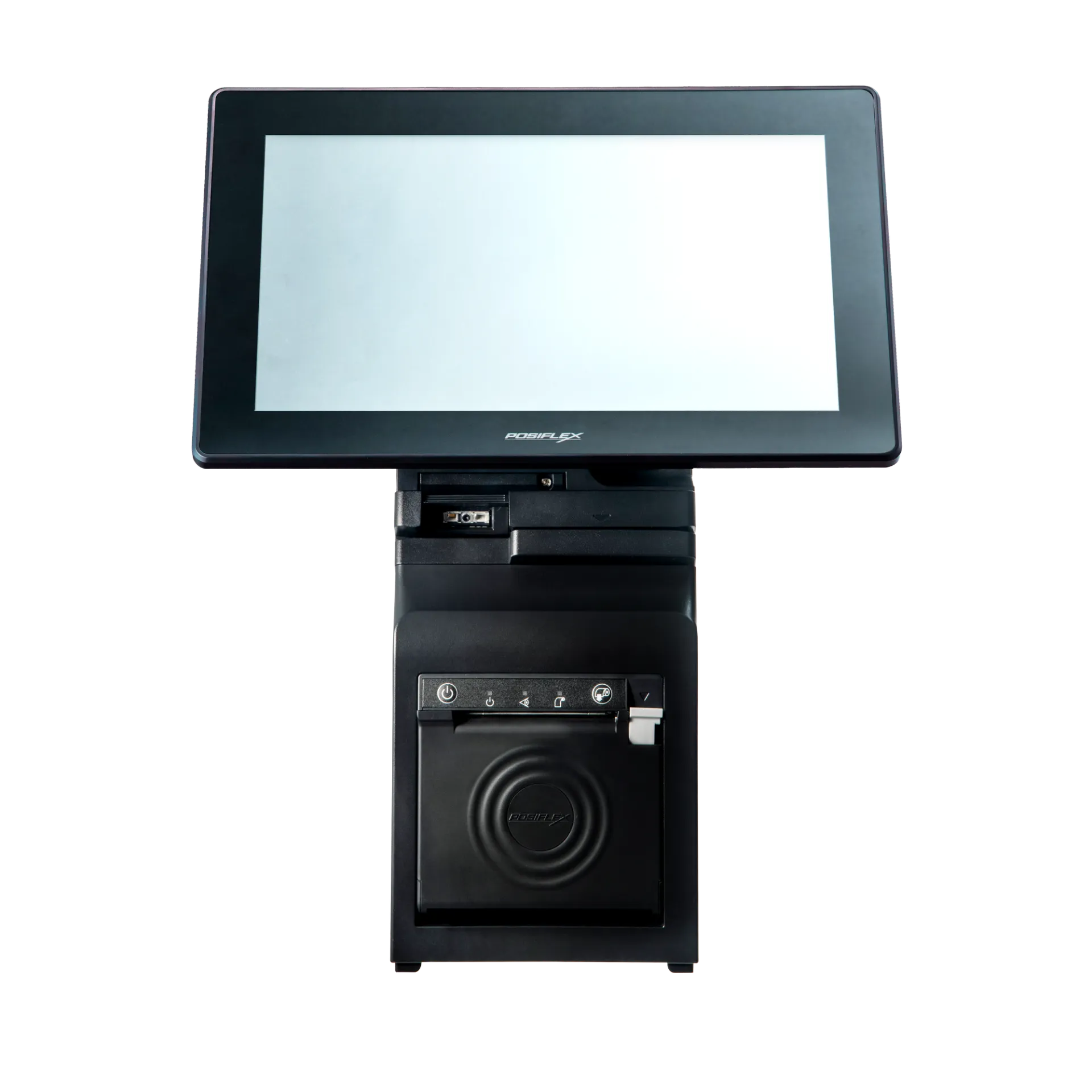

HS-6714W
- 14″ True Flat PCAP Multi Touch Display
- Powered by Intel’s Whiskey Lake Core Processors
- Support MSR, Fingerprint Sensor, RFID Reader, Barcode Scanner and Thermal Printer
- Modular Design with Detachable Printer
- Quick Access to I/Os
Small Form Factor
Its compact footprint takes space saving to extremes and creates a clean, cable-free environment.
Award-winning All-in-one Solution
The HS-6714W integrates the most widely used peripherals options in daily POS operation including MSR, fingerprint sensor, RFID reader, barcode scanner and thermal printer.
Modular Design
Detachable modularized printer design allows quick access to the components, enabling convenient, efficient serviceability.
| System-Configuration | HS-6714W |
|---|---|
| Processor | Intel Whisky Lake Core i3-8145UE, up to 3.90 GHz, 4.0M Cache;
Intel Whisky Lake Core i5-8365UE, up to 4.10 GHz, 6.0M Cache |
| System Memory | DDR4 SO-DIMM x 2, max. 64GB |
| Storage Device | M.2 connector x 2 (support SATA signal only) |
| TPM | TPM 2.0 |
| Power Supply | 24V/100W |
| OS Support | Windows 10 IoT LTSC Windows 11 IoT LTSC |
| Display & Touch | |
| LCD | 14″ TFT LCD |
| Resolution | 1366 x 768 |
| Touch | True-flat PCAP touch with multi-touch support (IP65 on front panel) |
| I/O Expansion | |
| Serial Port | DB9 x 2 + RJ50 x 1, 5V/12V support on all COM ports |
| Parallel Port | Yes |
| Standard USB Port | USB 3.0 x 4 |
| OTG USB | N/A |
| LAN Port | 10/100/1000 Mb x 1 |
| Display Port | VGA x 1 (12V support for Posiflex monitors ) |
| CR Port | RJ11 x 1, control 2 CR via optional Y-cable (printer driven), supporting 24V cash drawer |
| PS2 Port | Yes |
| Audio | Line-out / Mic-in combo jack x 1 |
| Expansion Slot | M.2 slot x 1 |
| Dimension | |
| Dimension (W x D x H in mm) | 371 x 210 x 476 |
| Weight (N. W. in kg) | 5.8 |
| Environmental | |
| Operating Condition | 0°C – 40°C, 20%RH – 90%RH |
| Storage Condition | -20°C – 70°C, 10%RH – 90%RH |
| Built-In Options | |
| WiFi module | M.2 WiFi/BT module |
| Printer Module | PP-7900, 3″ speedy thermal printer, 250 mm/sec (max.) |
| MSR Module | 3 tracks ISO or JISII (HID/VCOM selection) |
| Scanner Module | 2D barcode scanner |
| RFID Reader Module | Support MIFARE Ultralight and Classic 1K card (HID/VCOM Selectable) |
| iButton Module | Yes (cannot coexist with Fingerprint Sensor) |
| 4G/LTE Communication Module | Single SIM slot, selected band support |
| Fingerprint Sensor Module | Optical type |
| Attachment Options | |

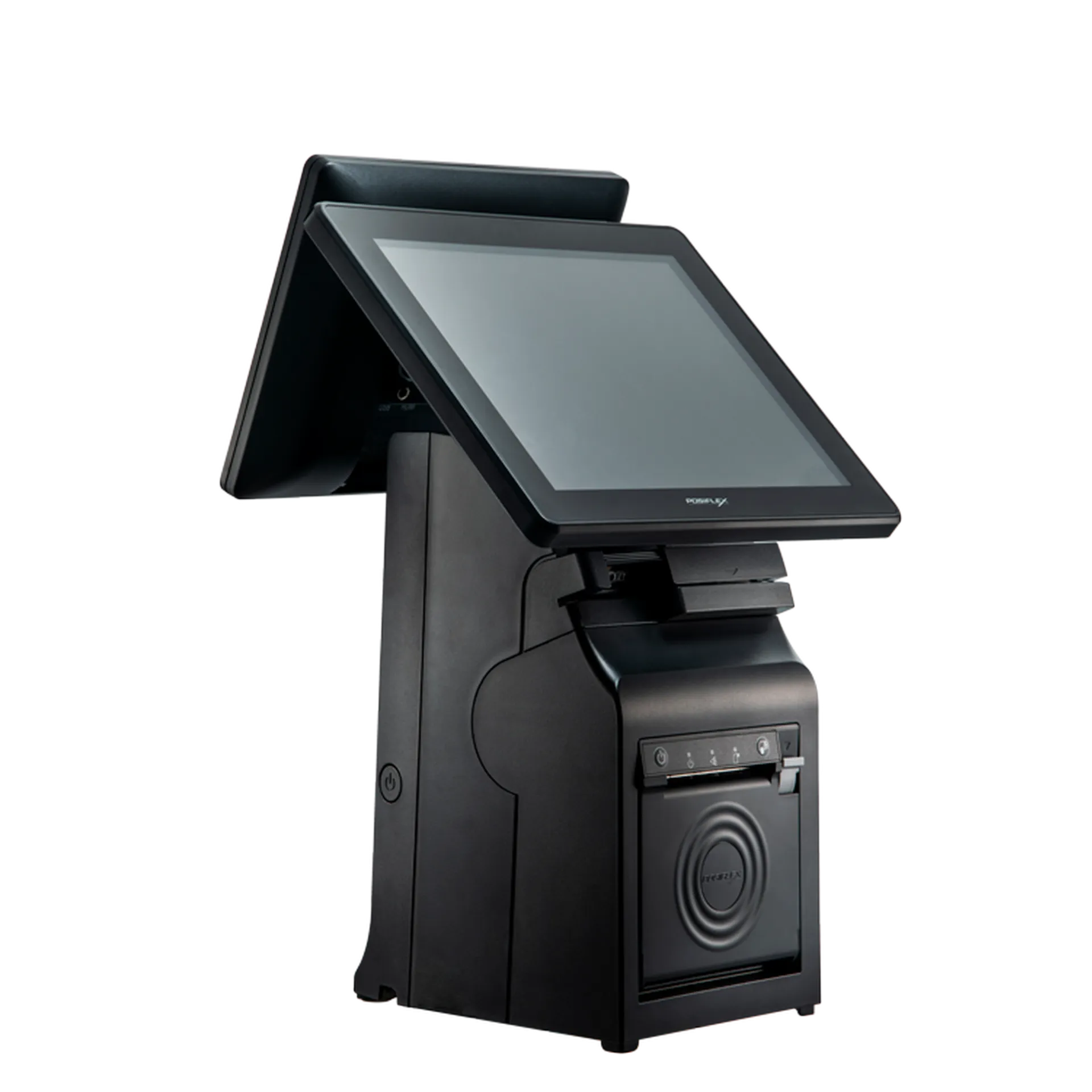

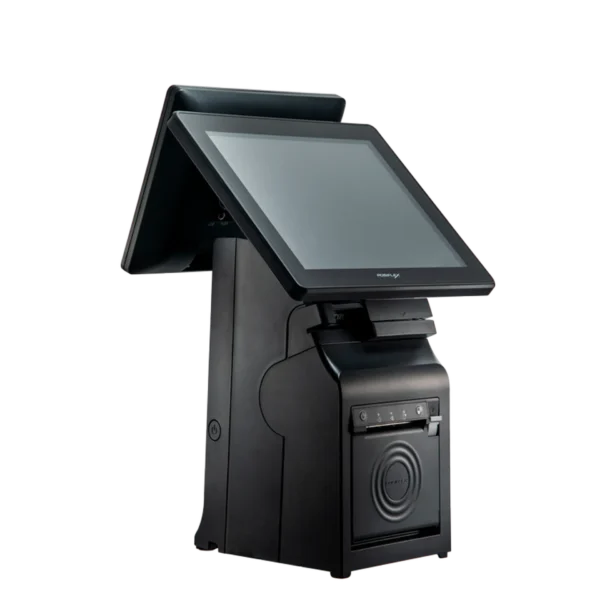

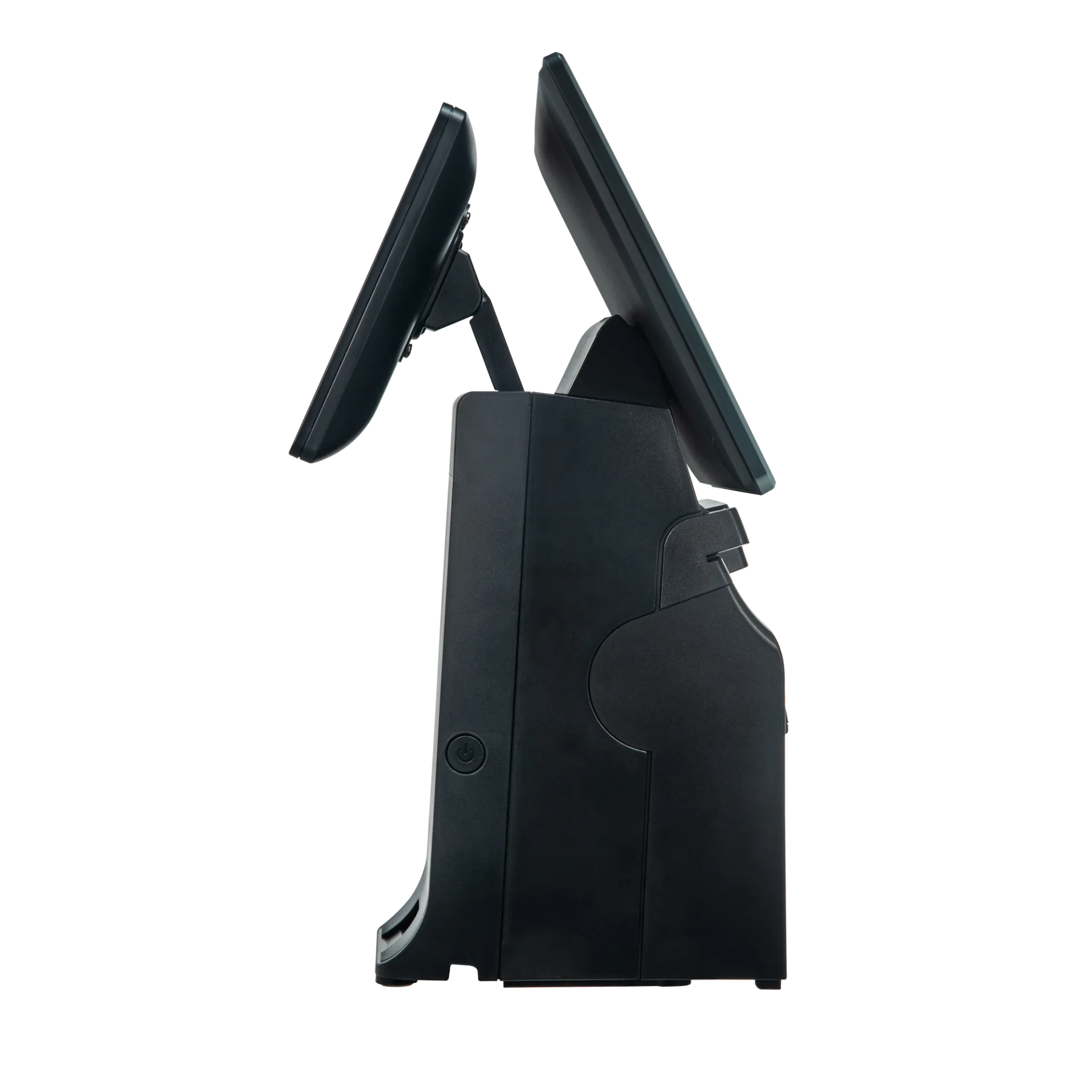

| POS Monitor | Non-touch TFT LCD: 7″/9.7″/12.1″; PCAP touch TFT LCD: 9.7″ |
| Line Display | 2 x 20 rear-mount VFD customer line display; 2 x 20 rear-mount LCD customer line display; |
