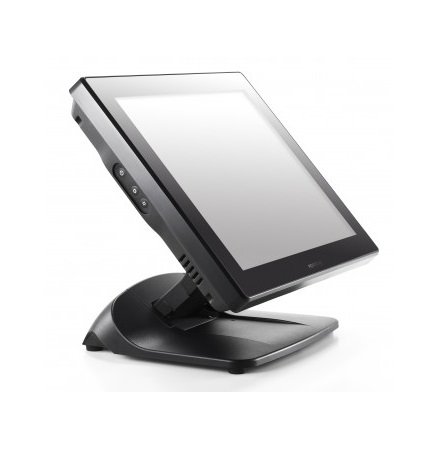

JIVA_XT-8315 is the companion of the XT-7315, which has been enhanced with 11th Gen Intel® Tiger Lake CPUs, which is powerful enough to handle any task imaginable that comes its way.

Add to quote
asset 141 24B27lhVB6

Sleek Look

Slimmer than ever! Every curve and detail of the XT-8315/ XT-8315E is carefully thought out to make itself one of the most visually desirable terminals in the market.

asset 146 24B278S14p

Powerful and Reliable

With Intel CPUs up to Core i7, XT-8315/ XT-8315E can deliver powerful performance to run today’s demanding POS applications.

asset 156 24B277bevg

GEN8E Base

Optional GEN8E Base (U.S. Patent 9004436) that integrates internal power adaptor and PoweredUSB port into the base stand, which keeps counters clutter-free.

asset 145 24B275J6ht

Fan-free Design

Solve the fan maintenance issue and provide silent mode operation, which is ideally suited for high-end boutique stores or hospital environments.

asset

Multi-Position Folding Base

The patented foldable base of the XT-8315/ XT-8315E enables users to adjust the screen to a height and angle of their choice, providing unparalleled flexibility. (U.S. Patent 9004436)

Categories: , Brand: ,
System-Configuration XT-8315 XT-8315E
Processor Intel Tiger Lake UP3 Core i3-1115G4E, up to 3.90 GHz, 6M Cache;

Intel Tiger Lake UP3 Core i5-1145G7E, up to 4.10 GHz, 8M Cache;

Intel Tiger Lake UP3 Core i7-1185G7E, up to 4.40 GHz, 12M Cache

 Intel Tiger Lake UP3 Core i3-1115G4E, up to 3.90 GHz, 6M Cache;

Intel Tiger Lake UP3 Core i5-1145G7E, up to 4.10 GHz, 8M Cache;

Intel Tiger Lake UP3 Core i7-1185G7E, up to 4.40 GHz, 12M Cache
System Memory DDR4 SO-DIMM slot x 2, max. 64GB DDR4 SO-DIMM slot x 2, max. 64GB
Storage Device M.2 connector x 2 (support both SATA and PCIe signal) M.2 connector x 2 (support both SATA and PCIe signal)
RAID Function Yes , (RAID 0/1) Yes , (RAID 0/1)
Intel vPro Support Yes, depends on processor Yes, depends on processor
TPM TPM 2.0 TPM 2.0
Power Supply 12V/60W 12V/150W
OS Support Windows 10 IoT LTSC
Windows 11 IoT LTSC		 Windows 10 IoT LTSC
Windows 11 IoT LTSC
Display & Touch
LCD 15” TFT LCD 15” TFT LCD
Resolution 1024 x 768 1024 x 768
Touch True-flat PCAP touch with multi-touch support (IP65 on front panel) True-flat PCAP touch with multi-touch support (IP65 on front panel)
I/O Expansion
Serial Port RJ50 x 3 + COM4/COM5 via optional converter cable from service window, 5V support on all COM ports, 12V support on COM1 to COM3 RJ50 x 3 + COM4/COM5 via optional converter cable from service window, 5V support on all COM ports, 12V support on COM1 to COM3
Parallel Port via optional conversion cable through service window via optional conversion cable through service window
Standard USB Port USB 3.0 x 4 + USB 2.0 x 2 USB 3.0 x 4 + USB 2.0 x 2 + USB Type-C x 1 (for both storage & display)
PoweredUSB Port Optional 24V x 1 + 12V x 3 via GEN8E base 24V PoweredUSB x 1, Optional 24V x 1 + 12V x 3 via GEN8E base
OTG USB N/A N/A
LAN Port 10/100/1000 Mb x 2 10/100/1000 Mb x 2
Display Port VGA x 1 (12V support for Posiflex monitors) + HDMI x 1 VGA x 1 (12V support for Posiflex monitors) + HDMI x 1 + USB Type-C x 1 (for both storage & display)
CR Port RJ11 x 1, control 2 CR via optional Y-cable, support 24V cash drawer RJ11 x 1, control 2 CR via optional Y-cable, support 24V cash drawer
PS2 Port via optional conversion cable through service window via optional conversion cable through service window
UPS Port Yes, for optional UPS battery Yes, for optional UPS battery
Audio Internal 2W speaker x 1 + Line-out/mic-in combo jack x 1 Internal 2W speaker x 1 + Line-out/mic-in combo jack x 1
Expansion Slot M.2 slot x 1 M.2 slot x 1
Dimension
Dimension (W x D x H in mm) 372 x 252.7 x 320 372 x 252.7 x 320
Weight (N. W. in kg) 6 6
Environmental
Operating Condition 0°C – 40°C, 20%RH – 90%RH 0°C – 40°C, 20%RH – 90%RH
Storage Condition -20°C – 70°C, 10%RH – 90%RH -20°C – 70°C, 10%RH – 90%RH
Built-In Options
WiFi module M.2 WiFi/BT module M.2 WiFi/BT module
Camera Module N/A N/A
Printer Module N/A N/A
AG Glass N/A N/A
Attachment Options
POS Monitor PCAP touch TFT LCD: 9.7″/14″/15″
Non-touch TFT LCD: 7″/9.7″/12.1″/14″/15″
Resistive touch TFT LCD: 15″		 PCAP touch TFT LCD: 9.7″/14″/15″
Non-touch TFT LCD: 7″/9.7″/12.1″/14″/15″
Resistive touch TFT LCD: 15″
Line Display 2 x 20 rear-mount VFD/LCD customer line display;
7″ color LCD graphical customer line display		 2 x 20 rear-mount VFD/LCD customer line display;
7″ color LCD graphical customer line display
External UPS Pack for RT Series N/A N/A
Attachment MSR; iButton; Rotatable 2D Scanner; RFID; Fingerprint Sensor; Keypad, 24V + 12V PoweredUSB module via GEN 8E base (USB 2.0 x 1 will be occupied with this module) MSR; iButton; Rotatable 2D Scanner; RFID; Fingerprint Sensor; Keypad, 24V + 12V PoweredUSB module via GEN 8E base (USB 2.0 x 1 will be occupied with this module)
Note –
