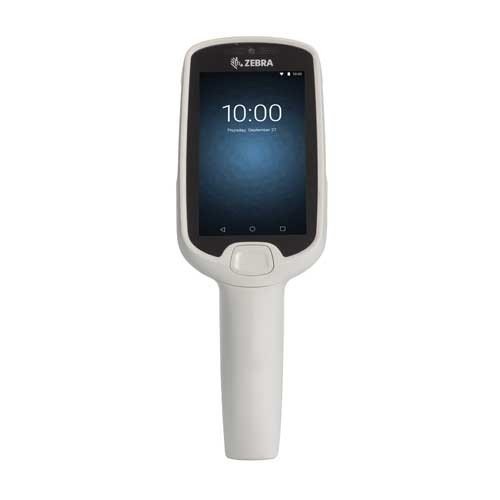

PS20 Mobile Computer
Deliver the Ultimate In-Store Shopping Experience
Give every shopper that enters your store the ultimate personalized shopping experience with the PS20 Personal Shopper while adding increased productivity for your staff.
Physical Characteristics
| Dimensions | 2.95 in. H x 8.58 in. L x 3.09 in. W 7.50 cm H x 21.80 cm L x 7.86 cm |
| Weight | 290g |
| Display | 4.0 inch capacitive; WVGA; color |
| Touch Panel | Corning Gorilla Glass touch panel with air gap |
| Imager Window | Corning Gorilla Glass |
| Interface/Communications | USB 2.0 Client Cable for device maintenance |
| Voice | Push-to-Talk (PTT) voice support via internal speaker; Zebra Workforce Connect PTT Pro (optional) |
| Audio | Speaker; One (1) microphone (Plus configuration) |
| Buttons | 1 dedicated scan button |
Performance Characteristics
| Processor | Qualcomm Snapdragon™ 660 octa-core, 2.2 GHz |
| Operating System | Upgradeable to Android 14 |
| Memory | Base and Plus Configurations: 4GB RAM/16GB Flash |
| Power | PowerPrecision+ 3500 mAh capacity Li Ion rechargable battery |
| Security | Verified Boot; Secure Boot |
User Environment
| Operating Temp. | 14° F to 122° F/-10° C to 50° C |
| Storage Temp. | -4° F to 158° F/-20° C to 70° C |
| Humidity | Relative Humidity 5% to 95% non-condensing |
| Drop Specification | Multiple 4 ft./1.2 m drops to concrete over the entire operating temperature range |
| Tumble Specification | 1,000 1.64 ft./0.5 m tumbles at room temperature |
| Vibration | 2g peak, 5 Hz to 2 kHz, 1 hour duration per axis |
| Thermal Shock | -4° to 158° F/-20° to 70° C |
| Electrostatic Discharge (ESD) | (+/-15kV) air, (+/-8kV) contact discharge |
Data Capture
| Scanning | Base model: SE2100 1D/2D imager Plus model: SE4710 1D/2D imager + Digimarc support |
| Light Source | Base model: White LED Illumination Plus model: Red LED Illumination with LED dot aim pattern |
| Camera — Front Facing | Plus model only: 5 MP fixed focus |
Interactive Sensor Technology
| Plus configurations only: 3-axis accelerometer, gyroscope, scanning proximity sensor |
WLAN
| Radio | IEEE 802.11 a/b/g/n/ac/d/h/i/r/k/v3/w; Wi-Fi™ certified; IPv4, IPv6, 2×2 MU-MIMO |
| Data Rates | 5GHz: 802.11a/n/ac — up to 866.7 Mbps 2.4GHz: 802.11b/g/n — up to 300 Mbps |
| Operating Channels (depending on Regulatory) | Channel 1-13 (2412-2472 MHz); Channel 36-165 (5180-5825 MHz) Channel Bandwidth: 20, 40, 80 MHz Actual operating channels/ frequencies and bandwidths depend on regulatory rules and certification agency |
| Security and Encryption | WEP (40 or 104 bit); WPA/WPA2 Personal (TKIP, and AES); WPA/WPA2 Enterprise (TKIP and AES) — EAP-TTLS (PAP, MSCHAP, MSCHAPv2), EAP-TLS, PEAPv0-MSCHAPv2, PEAPv1-EAP-GTC and LEAP. EAP-PWD |
| Certifications | WFA (802.11n, WMM-PS, 801.11ac, PMF) |
| Fast Roam | PMKID caching; Cisco CCKM; 802.11r; OKC |
WPAN
| Class 2, Bluetooth v5.0, Bluetooth Low Energy (BLE) |
Locationing
| Supports Zebra’s Device Tracker; SmartLens, SNAP and MPact Supports Visual Light Communication (VLC) |
