Kiosk Mercury EK-2100 Series

POSIFLEX PRODUCTS

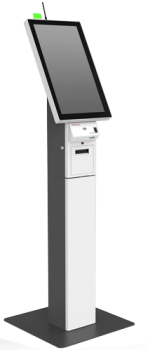

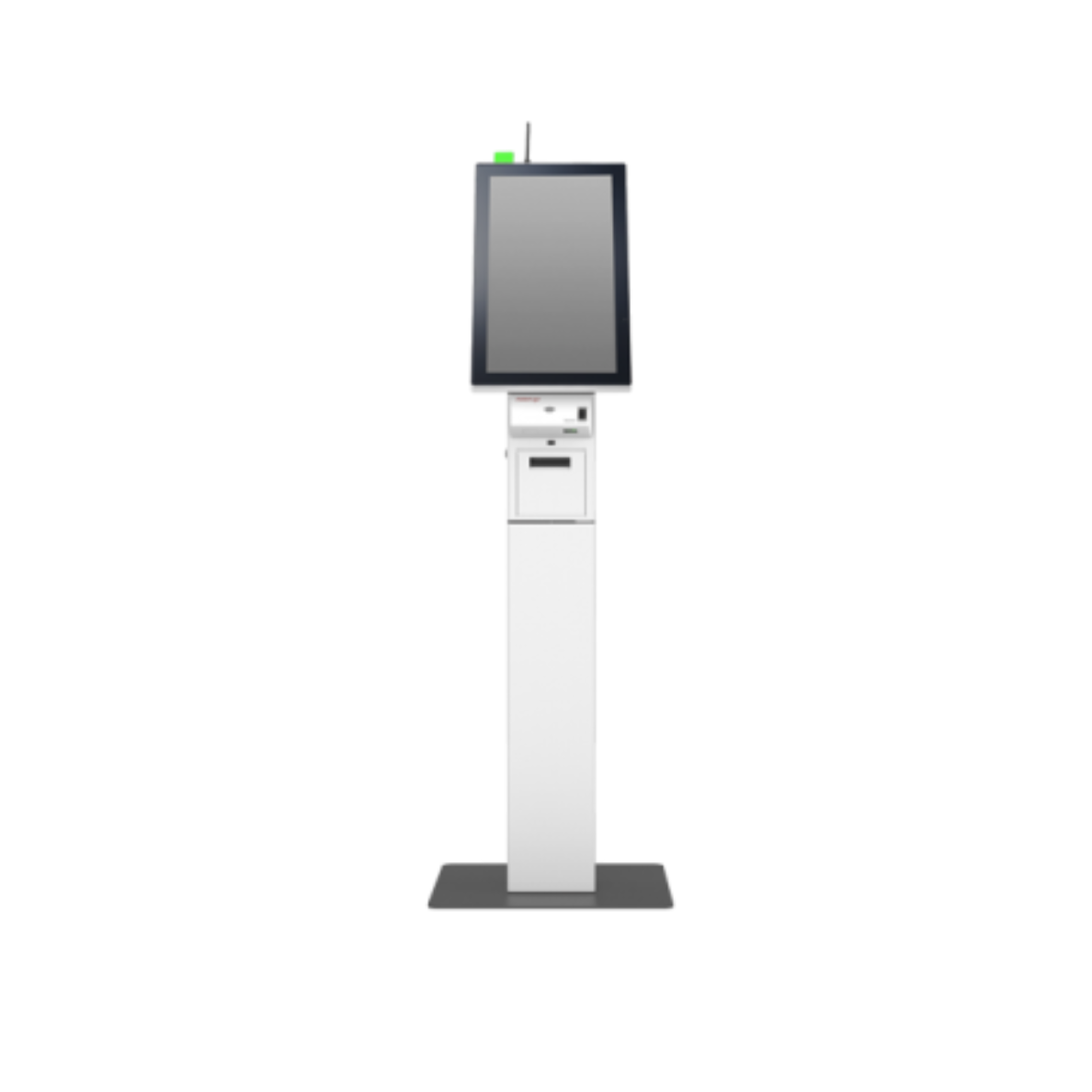

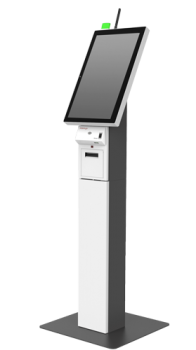

The Mercury EK-2100 Series is a 21.5″ display kiosk with a stylish and functional design that will blend seamlessly in any retail environment. The Mercury EK-2100 Series can serve as an Ordering/Queue Kiosk/Information Kiosk to interact with customers and simultaneously help retailers to drive more demand and business.

Built to Fit in and Get Down to Your Business
• 15.6” or 21.5” true-flat PCAP touch screen
• Flexible configurations: floor-standing or countertop
• Modular design for easy serviceability
• A good value kiosk in entry-level category
• Popular uses: product display & advertising, ordering & payment, click & collect, ticketing & e-reservations, wayfinding & customer guidance

The Mercury EK-2100 Series is a 21.5″ display kiosk with a stylish and functional design that will blend seamlessly in any retail environment. The Mercury EK-2100 Series can serve as an Ordering/Queue Kiosk/Information Kiosk to interact with customers and simultaneously help retailers to drive more demand and business.

Built to Fit in and Get Down to Your Business
• 15.6” or 21.5” true-flat PCAP touch screen
• Flexible configurations: floor-standing or countertop
• Modular design for easy serviceability
• A good value kiosk in entry-level category
• Popular uses: product display & advertising, ordering & payment, click & collect, ticketing & e-reservations, wayfinding & customer guidance



• • SPECIFICATION

• • • • • • • • • •

Processor

EK-2110: Dual Cortex-A72 + Quad Cortex-A53, EK-2130: Intel Bay Trail J1900, Quad Core, up to 2.42 GHz, 2M Cache, EK-2150: Intel 7th Generation Kaby Lake U Core i3/i5

System Memory

EK-2110: DDR4, 2 GB, EK-2130: DDR3L SO-DIMM slot x 1, max. 8 GB, EK-2150: DDR4 SO-DIMM slot x 1, max. 16 GB

Storage Device

EK-2110: 16 GB eMMC, EK-2130: SATA SSD x 1, EK-2150: SATA SSD x 1

Intel VPro Support

EK-2150: Core i5: Yes (for option)

TPM

EK-2130 & EK2150: Yes (for option)

Power Supply

12V/60W x 1 + 24V/60W x 1

OS Support

EK-2110: Android 9.0, EK-2130: Win 7/POSReady 7/WE 8.1 Industry/Win 10 IoT, EK-2150: Windows 10 IoT 64 bit

SERIAL PORT

EK-2110: RJ50 x 2, EK-2130: 3, DB9 x 1 + RJ50 x 2, EK-2150: 3, DB9 x 1 + RJ50 x 2

STANDARD USB PORT

EK-2110: USB 3.0 x 1+USB 2.0 x 5, EK-2130: USB 3.0 x 1+ USB 2.0 x 7, EK-2150: USB 3.0 x 2 + USB 2.0 x 6

OTG USB

EK-2110: micro USB x 1

DISPLAY PORT

1 x HDMI

LAN PORT

10/100/1000 Mb x 2

Audio

Internal 3W speaker x 2

• • DISPLAY & TOUCH

• • • • • • • • • •

LCD

21.5"

RESOLUTION

1920 x 1080

TOUCH

True-flat PCAP touch with multi-touch support

• • PHYSICAL DIMENSION

• • • • • • • • • •

DIMENSION (W X D X H IN MM)

Countertop version (Landscape): 540 x 395 x 588, Countertop version (Portrait): 395 x 395 x 774, Floorstanding version (Landscape):540 x 500 x 1362, Floorstanding version (Portrait): 500 x 500 x 1548

Weight

Countertop version: 22.6, Floorstanding version: 34.8

• • ENVIRONMENTAL

• • • • • • • • • •

OPERATING CONDITION

EK-2110: 0°C – 50°C, 20%RH – 90%RH, EK-2130 & EK-2150: 0°C – 50°C, 20%RH – 90%RH (Equipped with SSD)

STORAGE CONDITION

-20°C – 70°C, 10%RH – 90%RH

Proximity Sensor

Range from 60 cm to 100 cm

CAMERA

1MP wide angle camera

Printer

3" thermal printer w/auto cutter, 200 mm/sec (max.)

Status Indicator

RGB Color LED Indicator (for portrait mode only)

WIFI

EK-2110: USB Dongle, EK-2130 & EK-2150: M.2 WiFi/BT module

Scanner

2D barcode scanner

EMV Payment Device Bracket

Custom bracket support for various EMV payment devices

NFC

EK-2130 & EK-2150: Support ISO/IEC 14443-A&B (MIFARE), JIS x 6319-4 (Felica), ISO/IEC 15693, NFC protocols – tag read/write (ISO/IEC-18092)

4G / LTE

Support selected bands & countries with full SIM slot (mini-PCIe module) by request
