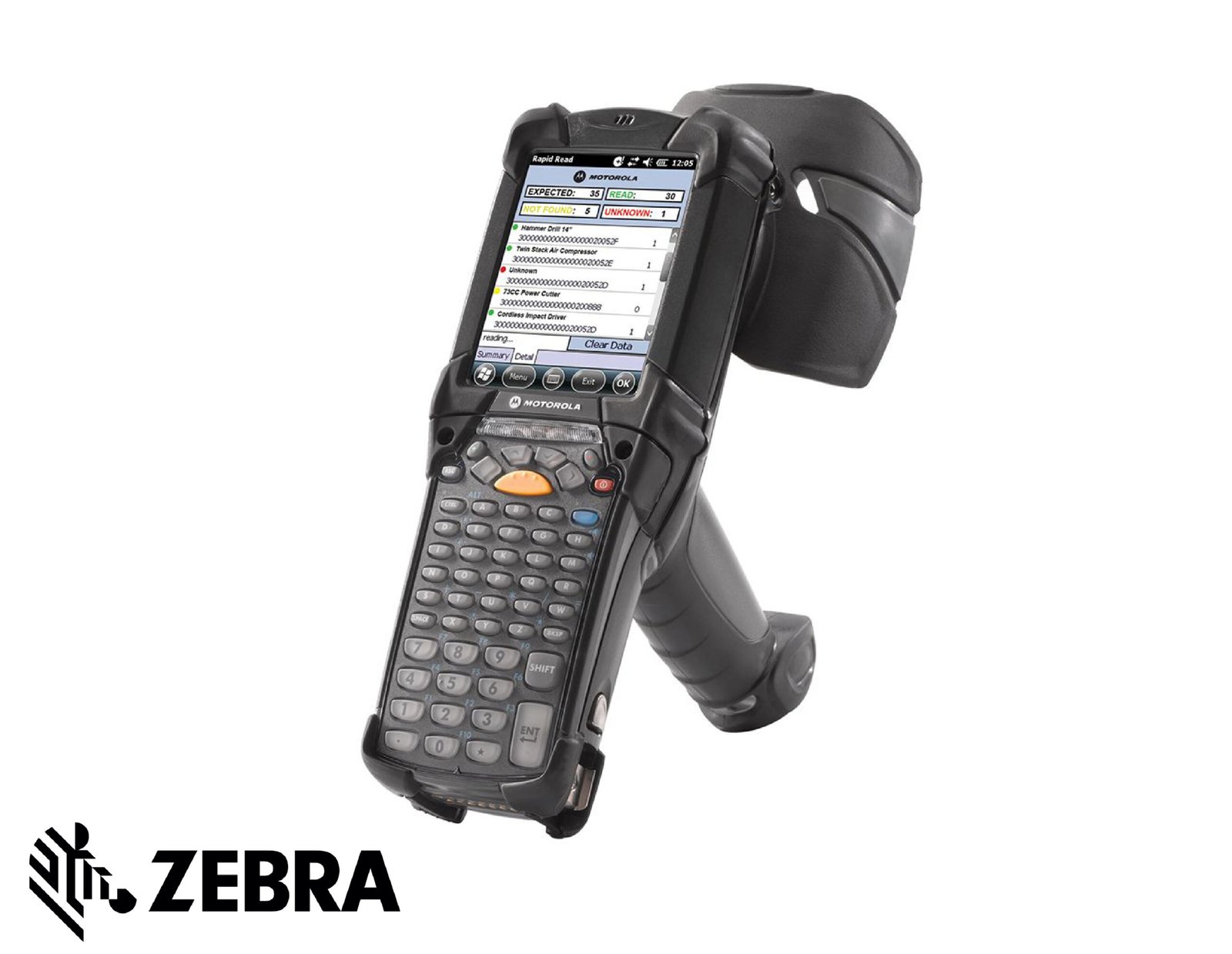

LONG RANGE, HIGH PERFORMANCE SAVES TIME AND MONEY To put more product into the hands of your customers – and put more profit into your pockets – you need to know what you have and where to find it. On the dock or in the storeroom, the MC9190-Z Handheld RFID Reader is designed to make that job faster and easier.
• • PHYSICAL CHARACTERISTICS | • • • • • • • • • • |
---|---|
Dimensions | 10.75 in. L x 4.7 in. W x 7.7 in. H, 27.3 cm L x 11.9 cm W x 19.5 cm H |
Weight | 34.35 oz / 2.147 lbs (including battery), 973.8 gr / .986 kg (including battery) |
Display | 3.7 in. VGA color with digitizer and backlight |
Keyboard | 28, 43 and 53-key options |
Power | rechargeable 7.2 volt Lithium Ion 2200 mAh battery pack , 15.8 watt hours, Removable |
• • Performance Characteristics | • • • • • • • • • • |
CPU | Marvell PXA320 processor at 806 MHz |
Operating System | Microsoft Windows Mobile 6.5 |
Memory | 256 MB/1 GB |
Expansion | Up to 32 GB SD/MMC card |
App Development | DCP and SMDK available through Zebra Developer Zone Web site, PSDK |
Scan Engine | SE1524-ER: 1-D Extended Range, SE4500-HD: 1-D/2-D DPM, SE4500: 2-D Imager, SE960: 1-D Laser |
• • USER ENVIRONMENT | • • • • • • • • • • |
Operating Temperature | 14° F to 122° F/-10° C to 50° C |
Charging Temperature | 32° F to 104° F/0° C to 40° C |
Storage temperature | -40° F to 158° F/-40° C to 70° C |
Humidity | 5% to 95% non-condensing |
Drop Specification | Multiple drops to concrete: 6 ft./1.8 m across the operating temperature range |
Tumble Specification | 2,000 one-meter tumbles at room temperature (4,000 hits) |
Sealing | IP64 (electronic enclosure, display and keypad) |
Electrostatic Discharge (ESD) | ± 15kv Air discharge, ± 8kv direct discharge, ± 8kv indirect discharge |
Ambient Lighting Tolerance | Fluorescent, Incandescent, Mercury Vapor, Sodium Vapor, LED1: 450 ft. candles (4,844 Lux), Tolerant to typical artificial indoor and natural outdoor (direct sunlight ) lighting conditions |
• • RFID | • • • • • • • • • • |
Standards Supported | EPC Gen 2 DRM (DRM compliant up to 0.5w) |
Antenna | Integrated, linearly polarized |
Nominal Read Range | up to 4 ft./ up to 1.22 m |
Frequency Range | EU: 865-868MHz; US: 902- 928MHz |
• • WIRELESS COMMUNICATIONS | • • • • • • • • • • |
WLAN | 802.11 a/b/g |
Data Rates | 802.11a: up to 54 Mbps; 802.11b: up to 11 Mbps, 802.11g: up to 54 Mbps |
Frequency | All country dependent: 802.11a – 5 GHz; 802.11b – 2.4 GHz; 802.11g – 2.4 GHz |
Bluetooth | Bluetooth Version 2.1 with EDR |
WLAN Security | 802.1x, CCX v4, EAP-FAST ( TLS, MS-CHAPv2, EAP-GTC), EAP-TLS, FIPS 140-2, IPv6, LEAP, PEAP (TLS, MSCHAPv2, EAP-GTC), TTLS (CHAP, MS-CHAP, MS-CHAPv2, PAP or MD5), WPA2 Enterprise, WPA2/AES |
• • PERIPHERALS AND ACCESSORIES | • • • • • • • • • • |
Cradles | 4-slot charge only, 4-slot Ethernet, Single-slot serial/USB |
Printer | Supports extensive line of Zebra approved printers and cables |
Charger | 4-Slot universal battery charger |
Other Accessories | Cable adapter module, full set of cables, modem module, snap-on magnetic stripe reader, Zebra approved CAC Reader for government applications |
BRAND | ZEBRA |
